Applications :

• The cables are designed for transmission of signals up to 90 kHz in axle counter train detection systems.

Standards :

• RT/E/PS/00031

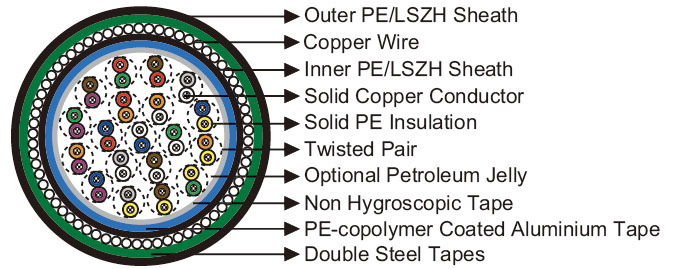

Construction :

• Conductors : Tinned copper wire, 0.9 or 1.4 mm nominal diameter.
• Insulation : Solid polyethylene.
• Cabl ing Element : Two insulated conductors are twisted together to form a pair.
• Stranding : Pairs are helically stranded in concentric layers.
• Filling : Cable core interstices are fi lled with a low-permitivity compound. Unfi lled cables option can be offered upon request.
• Core Wrapping : Plastic tape(s) with overlapping.
• Moisture Barrier: One laminated sheath made of aluminium tape coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
• Inner Sheath : Polyethylene or LSZH fi re retardant compound.
• Electrostatic Shield : One layer of helically applied copper wires.
• Electromagnetic Shield : Two helically applied steel tapes.
• Outer Sheath : Polyethylene or LSZH fi re retardant compound. Ruggedised PE sheath compound can be offered upon request.

Type Codes :

• F1 class :	Non LSZH cables.
  F5 class :	Unfilled cables
  D type	Unarmoured types
  R type :	Ruggedised PE sheath
  S type :	Steel tape armoured types
  B type :	Brass tape armoured types
  E1, E2 & E3 types :	3 different induction protection levels available.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	0.9	1.4
  Nominal Conductor Cross Section	mm2	0.63	1.5
  Maximum Conductor Resistance	Ω/km	30.0	12.5
  Minimum Insulation Resistance @500 V DC (1min)	MΩ.km	5000	5000
  Nominal Conductor Capacitance @800Hz/1000Hz (AC)	nF/km	42+3	47+3
  Dielectric Strength, conductor to screen (DC voltage 2mins)	V	3000	3000
  Maximum Average Attenuation
  @1.0KHz	dB/km	0.73	0.45
  @2.4KHz	dB/km	1.10	0.62
  @40KHz	dB/km	2.88	1.77
  @90KHz	dB/km	3.70	2.41
  @1.024MHz	dB/km	11.2	7.45
  Minimum Average Near-end Crosstalk
  @1.0KHz	dB/km	60	60
  @2.4KHz	dB/km	60	60
  @40KHz	dB/km	50	50
  @90KHz	dB/km	50	50
  @1.024MHz	dB/km	35	35
  Maximum Reduction Factor @100V/km,50Hz
  EMI RF 1 (modest level)		0.65	0.65
  EMI RF 2 (medium level)		0.45	0.45
  EMI RF 3 (high level)		0.20	0.20

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD (unarmoured); 10×OD (armoured).
• Temperature Range : -30°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code	Number of Pairs	Nominal Sheath Thickness mm		Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
0.9mm Conductor , 1.8mm Insulated Wire
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-2P0.9	2	2.2	2.4	23.4	1300
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-10P0.9	10	2.2	2.4	31.8	1650
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-12P0.9	12	2.2	2.4	35.0	1760
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-19P0.9	19	2.2	2.4	41.4	2275
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-24P0.9	24	2.2	2.4	44.0	2450
1.4mm Conductor, 2.7mm Insulated Wire
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-2P1.4	2	2.2	2.4	33.6	1480
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-10P1.4	10	2.2	2.4	40.2	2200
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-12P1.4	12	2.2	2.4	42.2	2325
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-19P1.4	19	2.2	2.4	47.5	2975
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-24P1.4	24	2.2	2.4	52.5	3150









UV Resistant	Water Resistant	Rated voltage		Impact Resistant	Buried in Ciround	Laid In Ducts





PVC Sheath

Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1





LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
